High-Efficiency Seed Cleaning, Sizing and Protection Solutions
Transforming naturally harvested product from the field into value-added and certified seed requires a precise engineering process. SRD Makine Wheat Seed Cleaning Plant removes foreign seeds, unwanted impurities, and lightweight grains from the product, then calibrates it to the desired sizes, making it ready for sowing. Operating with a standard input capacity of 3 to 5 tons per hour, our system processes natural product with a cleaning rate of 95%–97%.

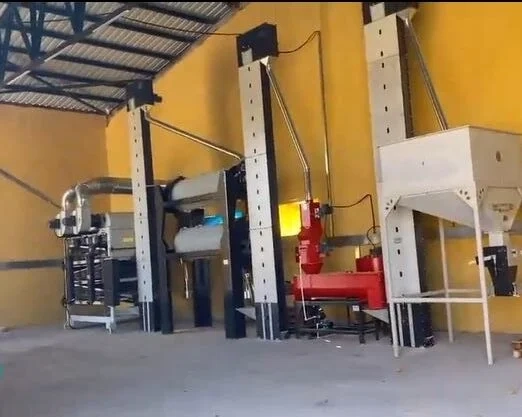

In the turnkey plant installed by SRD Makine, the technological stages through which the product passes are as follows:
Awn Breaker Machine: It removes awned grains, particularly those found in barley, increasing the seed's germination potential. At the initial stage, it prepares the product for coarse cleaning and transfer to the next station.
Trash Aspirator and Radial Aspirator: Coarse waste, straw, and lightweight dust in the product are removed at this stage through vacuum aspiration and screening.
Multi-Deck Screening and Sizing: The product passes through screens at different levels, where it is cleaned by airflow and precisely classified according to grain size (calibration).
Indented Cylinder Separator System: After sizing, difficult-to-separate materials such as oats, ears of grain, and foreign seeds are removed with nearly 100% precision thanks to the trieur's specially pocketed drum structure.

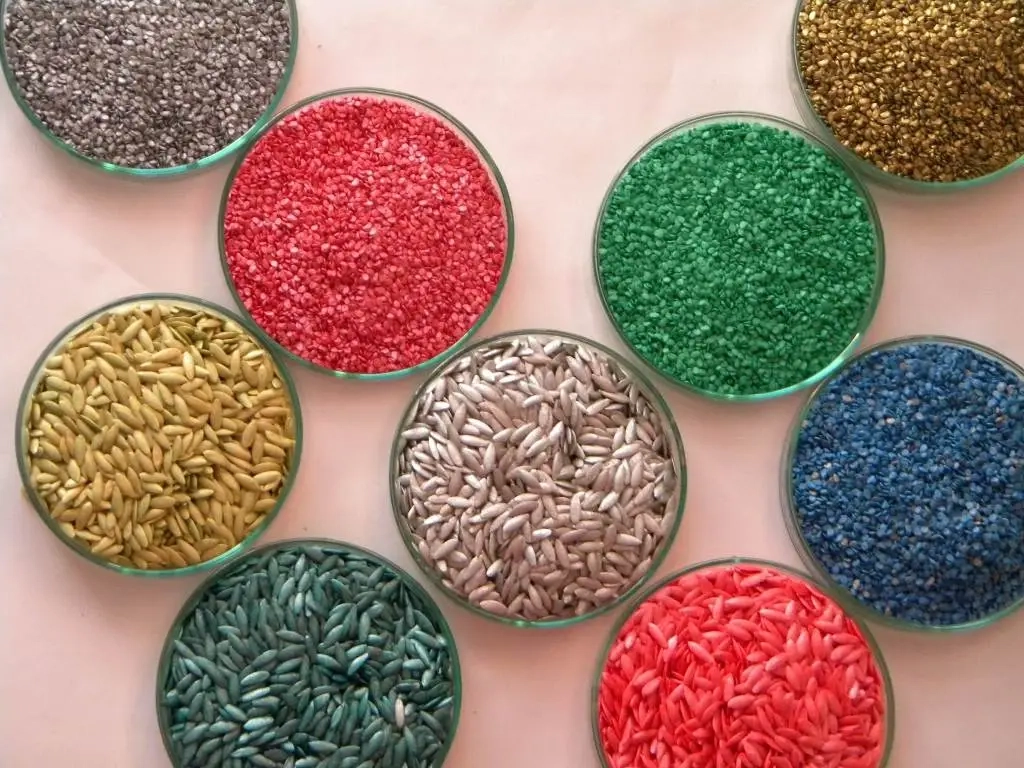

Liquid Seed Treatment Unit: To protect the cleaned seeds against pests, fungi, and microorganisms, the product surface is uniformly coated with a chemical seed treatment.
PLC Weigher and Bagging: High-quality seeds that have passed through all processing stages are accurately packed at the desired weights using PLC-controlled automatic or mechanical weighing systems.
Maximum Purity: The standard cleaning rate can be increased to 99.9% by integrating a Color Sorter (Sortex) into the plant.
High Germination Performance: Seed quality is preserved through conveying and cleaning equipment designed to prevent physical damage to the product.
Flexible Capacity and Control: Customized designs for different throughput requirements and PLC automation options that allow the entire process to be managed from a single point.
Durable Engineering: Heavy-duty chassis construction suitable for demanding industrial operating conditions, combined with low energy consumption for high operating profitability.
Certified seed production facilities.
Agricultural development cooperatives and large-scale farms.
Grain processing and cleaning centers.
